NEO BURNER
AUTOMATIC ETHANOL BURNER
Neo Burner is an ethanol-fuelled product in Planika’s premium collection – an alternative for traditional wood-burning fireplaces. The dedicated casing allows to install the unit almost immediately. The safe usage of the burner is provided by different sensors and a microprocessor that monitors the combustion process all the time.
FOR INDOOR USE ONLY

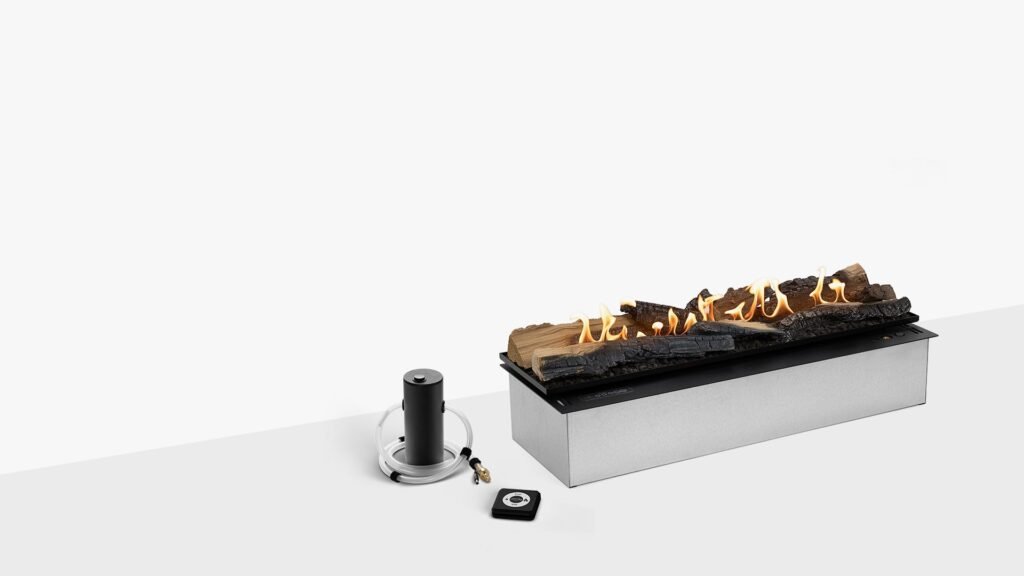

✔ Dedicated Pump
✔ Remote Control
✔ Optional Logs
✔ BEV Technology
TECHNICAL SPECIFICATION
| Flame height regulation | 2 stages |
| Fuel type | Bioethanol 95 – 96,6% |
| Flue | not required |
| Air change rate | 1 space volume per hour |
| Power supply | 230V |
| Finish | Black powder coating |
| Materials | Steel, galvanized steel toughened glass |
| Application | For indoor use only |
NEO BURNER MODELS

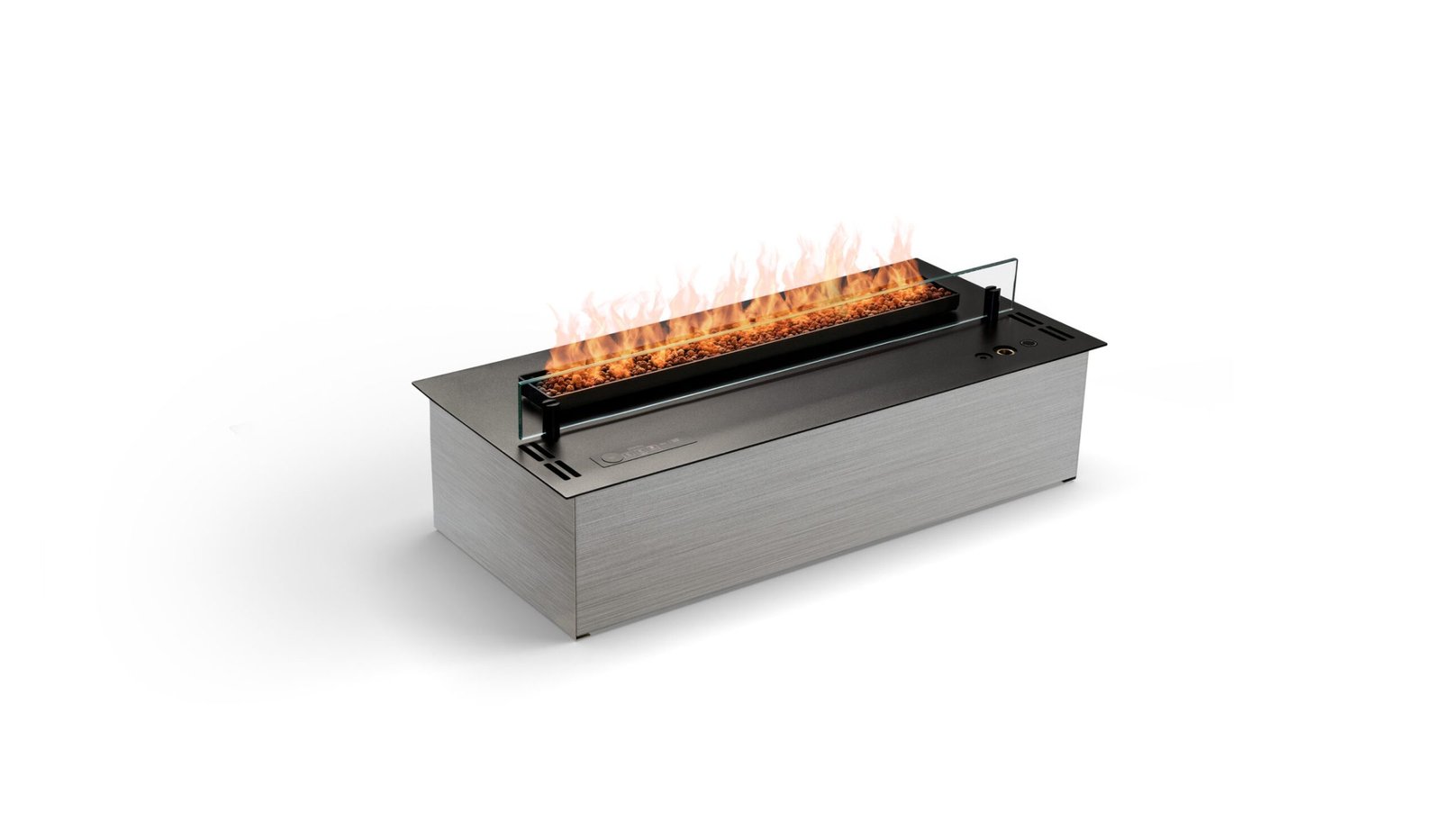

NEO BURNER 500
| Burning time | up to 4 h |
| Tank capacity | 1.3 L |
| Heat output | 4.1 kW |
| Required room size | 41 m³ |
| Length | 500 mm |
| Weight | 10.1 kg |

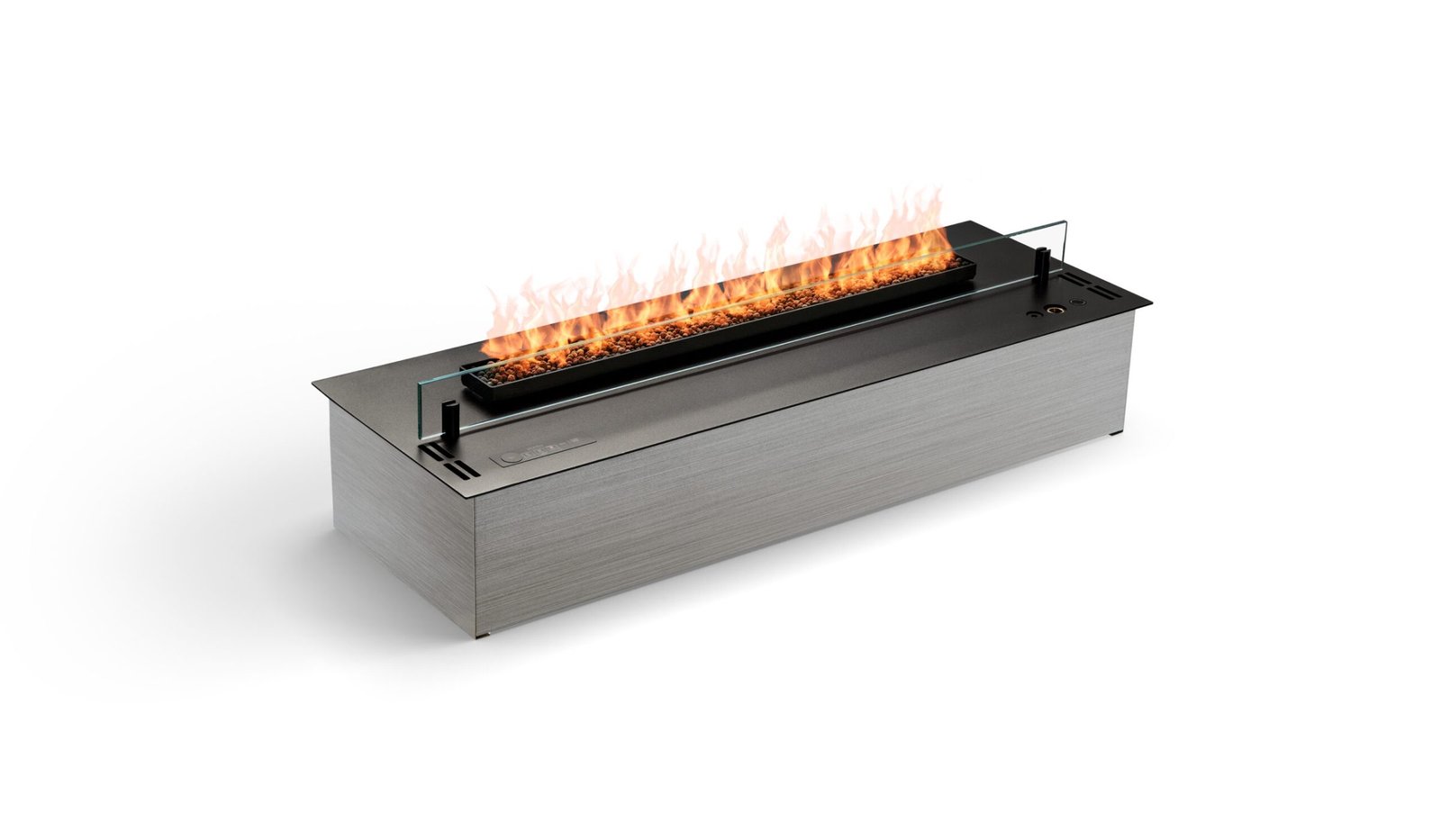

NEO BURNER 750
| Burning time | up to 6 h |
| Tank capacity | 2.1 L |
| Heat output | 4.1 kW |
| Required room size | 41 m³ |
| Length | 750 mm |
| Weight | 14.3 kg |

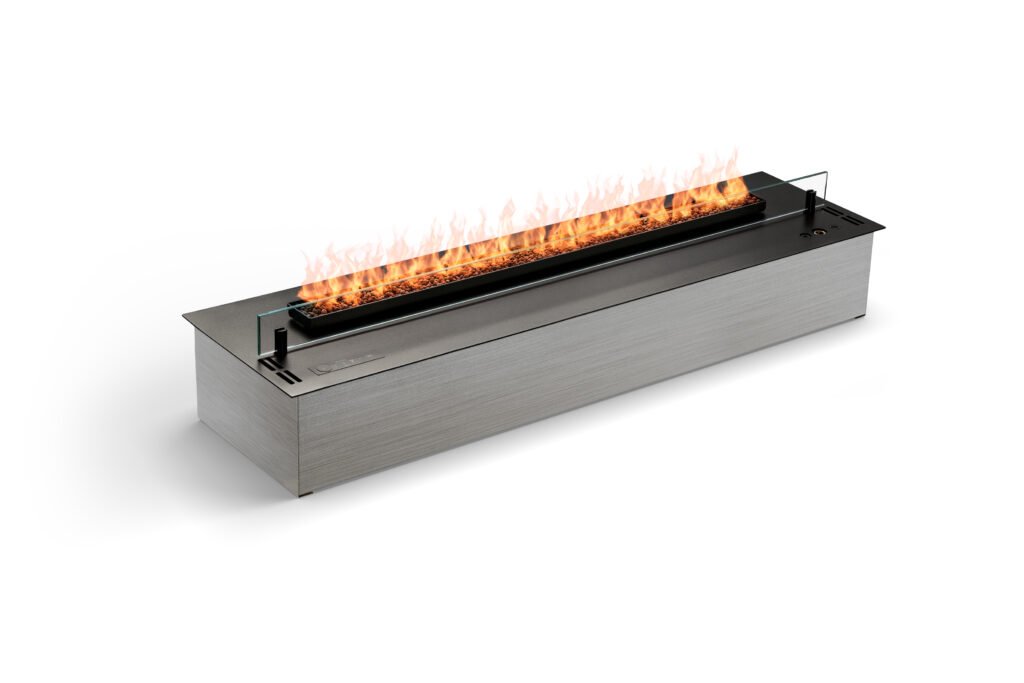

NEO BURNER 1000
| Burning time | up to 4 h |
| Tank capacity | 2.9 L |
| Heat output | 5.9 kW |
| Required room size | 59 m³ |
| Length | 1000 mm |
| Weight | 18.5 kg |
BEV TECHNOLOGY®
Planika has patented a technological solution, to ensure safe operating of our bioethanol burners. The fuel, stored inside the tank, is heated up by the device and turned into vapours. These vapours are then combusted right above the burner. As a result, there is no direct contact between the fire and the flammable liquid. Additionally, the combustion process doesn’t emit smoke, soot or, ash.
BEV TECHNOLOGY®
Planika has patented a technological solution, to ensure safe operating of our bioethanol burners. The fuel, stored inside the tank, is heated up by the device and turned into vapours. These vapours are then combusted right above the burner. As a result, there is no direct contact between the fire and the flammable liquid. Additionally, the combustion process doesn’t emit smoke, soot or, ash.
INTEGRATED CONTROL PANEL
The design of the panel allows for an intuitive and controlled usage of the bioethanol burner.
FLUE NOT REQUIRED
Our product doesn’t require the installation of a flue or any other pre-existing chimneys before the installation of our product.
2-STAGE FLAME HEIGHT
The burner has an option of 2-tage flame heigh – the lower level for a longer burning time, and higher for a stronger heat. Considering the tank has a capacity of 2.7l, you can enjoy your flame for up to 4.5 hours while on an eco-mode.
DURABLE MATERIALS
The burner was made of galvanized steel to ensure the highest level of durability of the product, so it can last for years.
CARBON NEUTRALITY
We always try to make sure that our products don’t leave an excessive carbon footprint on the environment. That’s why our bioethanol burners rely on the Net Zero Technology; plants from yearly seasonal crops are used in the production of the bioethanol, which later fuels the burner. The combustion process of these products are water vapour, heat, and an insignificant amount of CO2. The amount of carbon dioxide can be later compensated by the plants in the process of photosynthesis.
CARBON NEUTRALITY
We always try to make sure that our products don’t leave an excessive carbon footprint on the environment. That’s why our bioethanol burners rely on the Net Zero Technology; plants from yearly seasonal crops are used in the production of the bioethanol, which later fuels the burner. The combustion process of these products are water vapour, heat, and an insignificant amount of CO2. The amount of carbon dioxide can be later compensated by the plants in the process of photosynthesis.

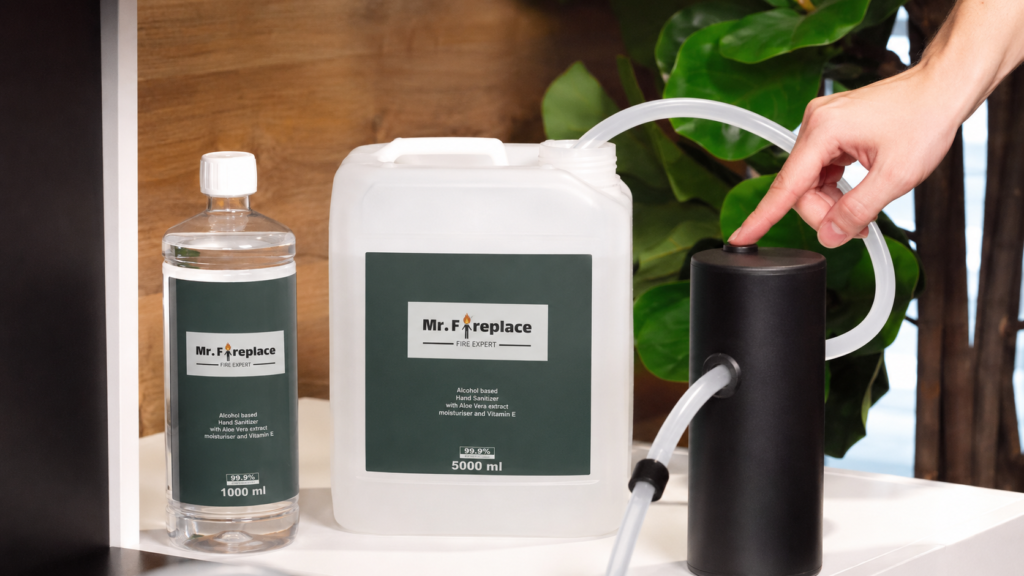

AUTOMATIC REFILLING
Neo Burner was implemented with an automatic refilling system to prevent human error from occurring. Watch the video and get to know more.
