PORTO CORE
FREESTANDING BEV® FIREPLACE
The first BEV fireplace for outdoor use. An alternative to gas fireplaces used in gardens, patios, hotels or restaurants. Possibility to create a customised surround to perfectly match our garden design.
✔ Real fire without Chimney
✔ No Cleaning
✔ No Smoke and Smell
✔ Remote Control
TECHNICAL SPECIFICATION
| Fuel tank capacity | 5.0 L |
| Maximum burn time | 14 hours |
| Maximum heat output | 3.7 kW |
| Minimum room cubature | 37 m3 |
| Flame height regulation | 6 stages |
| Fuel type | Bioethanol 95 – 96,6% |
| Flue | Not Required |
| Air change rate | 1 space volume per hour |
| Power supply | 230V |
| Finish | Black powder coating |
| Materials | Steel, galvanized steel toughened glass |
| Application | For outdoor and indoor use |
Customised Fireplace
Porto Core is an automatic ethanol fireplace with BEV technology in a freestanding design to be finished with any 8 mm thick cladding. It is the easiest way to arrange a real fire indoors as there is no need to connect it to a chimney. The flames in the Porto fireplace come from burning ethanol vapour and can be controlled by remote control and mobile app.
BEV® TECHNOLOGY
Planika puts safety to the highest standards. Our BEV (Burning Ethanol Vapours) Technology ensures no direct contact between the liquid fuel and the flame and complete control over the fire. The entire process is controlled by a microprocessor and numerous safety sensors. This gives you full control over the real fire in your indoor space.

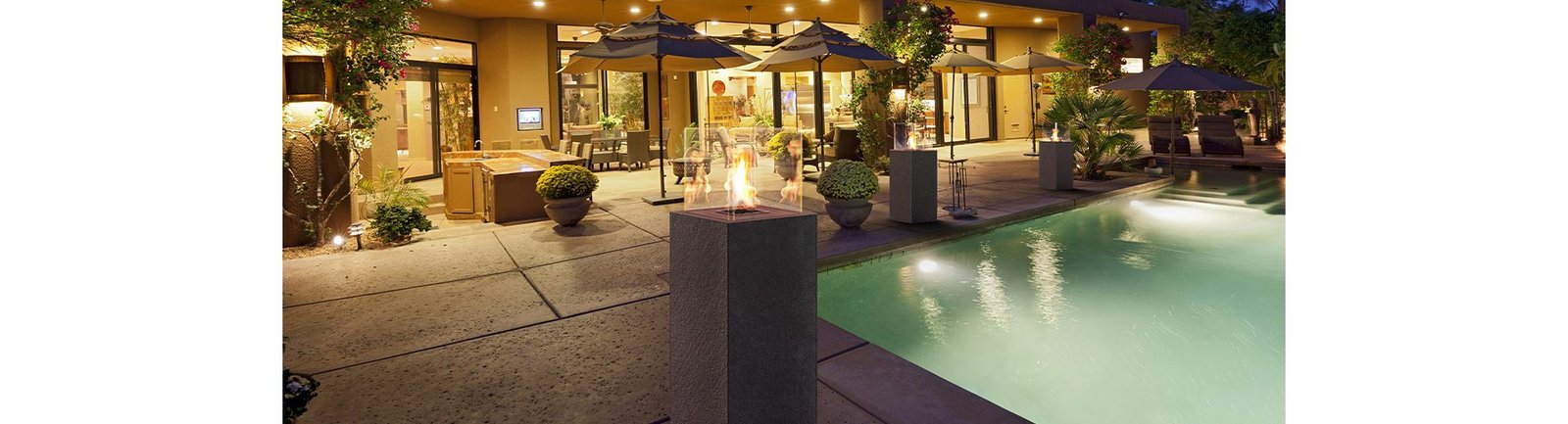

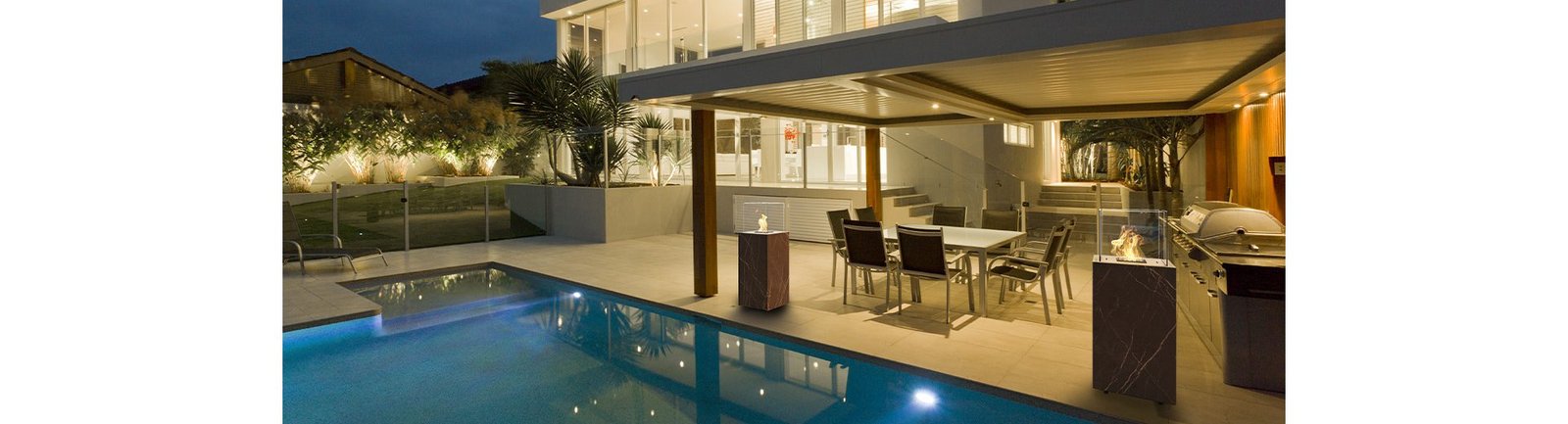

AUTOMATIC BEV FIREPLACE FOR OUTDOORS
Porto BEV fireplace was designed to withstand a variety of weather conditions. Its electronic systems are protected in a sealed, waterproof casing. The high glass shields guard the flame from strong wind blows.
